OpenHelix: A Short Survey, Empirical Analysis, and Open-Source Dual-System VLA Model for Robotic Manipulation

Abstract

Dual-system VLA (Vision-Language-Action) architectures have become a hot topic in embodied intelligence research, but there is a lack of sufficient open-source work for further performance analysis and optimization. To address this problem, this paper will summarize and compare the structural designs of existing dual-system architectures, and conduct systematic empirical evaluations on the core design elements of existing dual-system architectures. Ultimately, it will provide a low-cost open-source model for further exploration. Of course, this project will continue to update with more experimental conclusions and open-source models with improved performance for everyone to choose from.

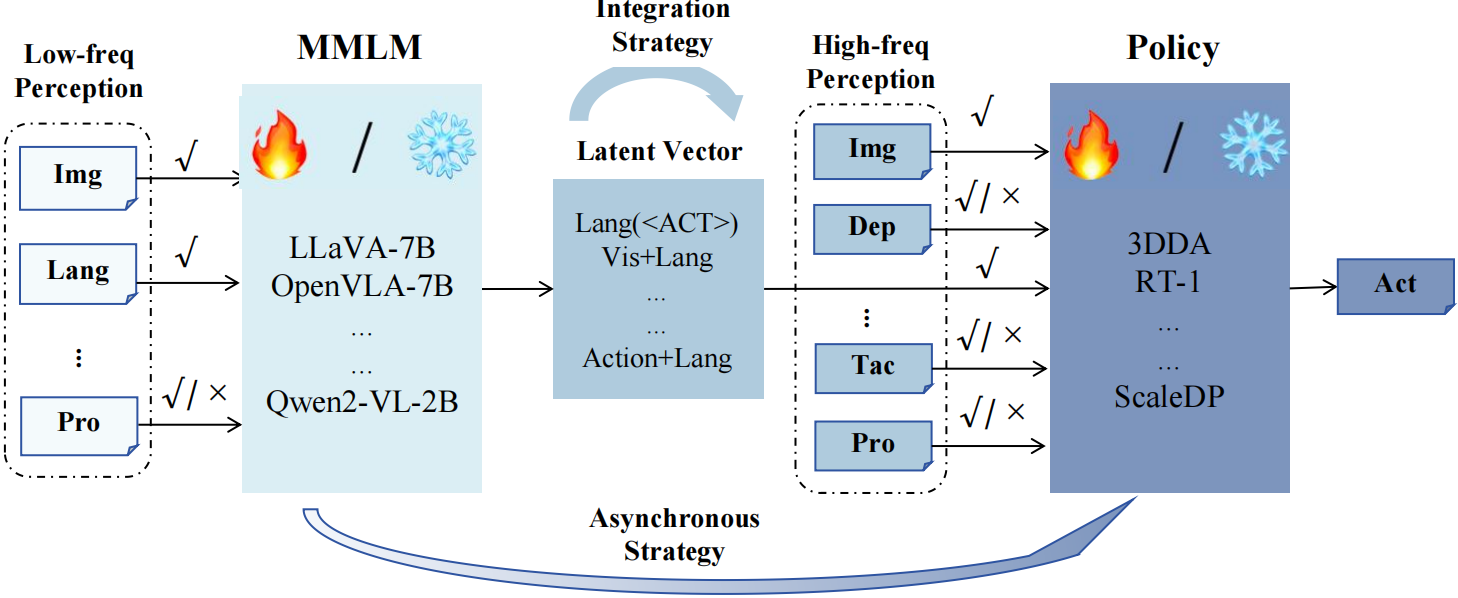

Key Design of Dual-system VLA

Dual-system VLA (Vision-Language-Action) architectures have become a hot topic in embodied intelligence research, but there is a lack of sufficient open-source work for further performance analysis and optimization. To address this problem, this paper will summarize and compare the structural designs of existing dual-system architectures, and conduct systematic empirical evaluations on the core design elements of existing dual-system architectures. Ultimately, it will provide a low-cost open-source model for further exploration. Of course, this project will continue to update with more experimental conclusions and open-source models with improved performance for everyone to choose from.

Empirical Study of Key Design

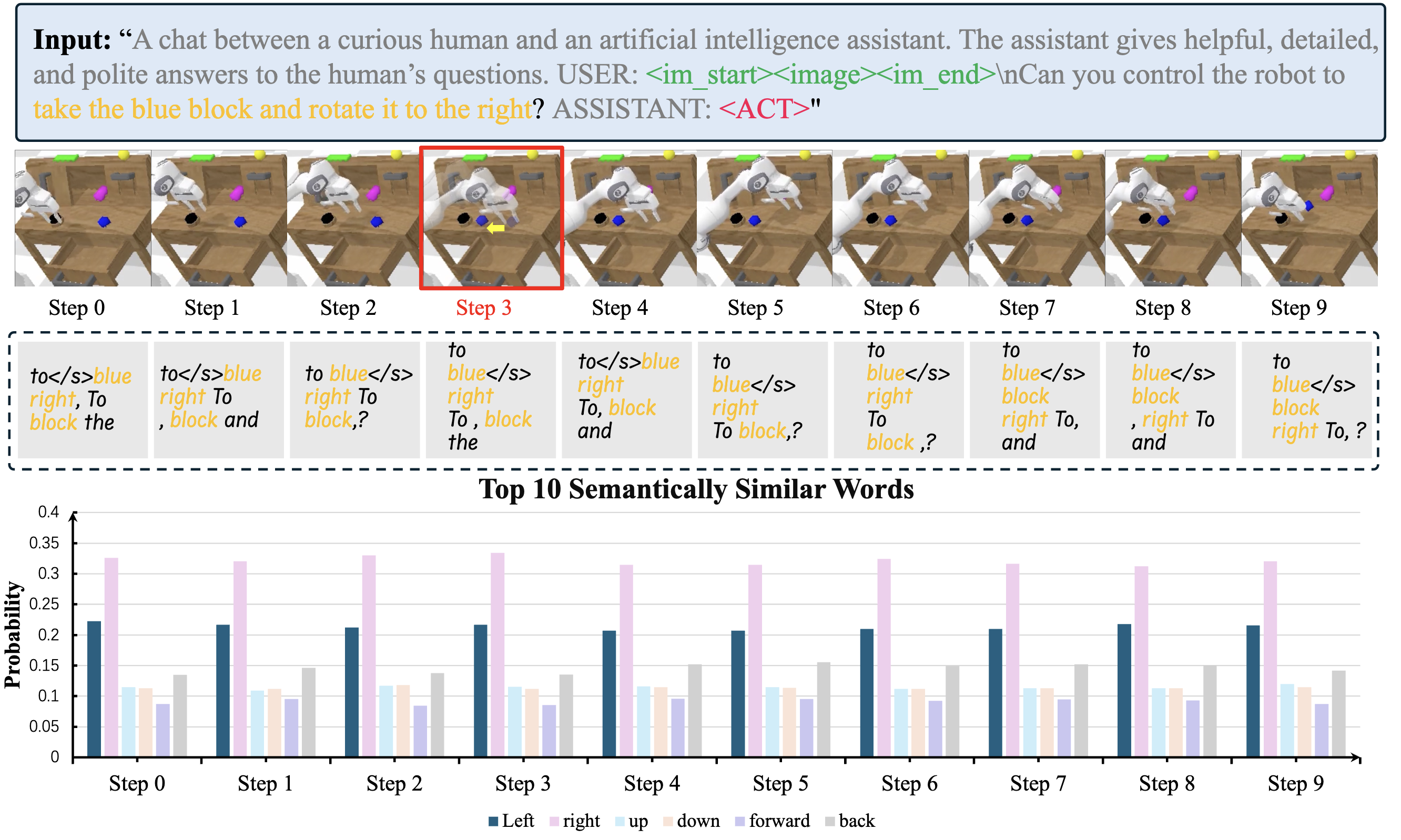

The results show that the current MLLM is insensitive to environmental changes, which is unexpected. Analysis of action token embeddings reveals that they mainly reflect instruction semantics, with little adaptation to visual input. For example, “right” consistently has a higher similarity than “left,” regardless of actual motion. This suggests the MLLM does not effectively leverage visual reasoning and instead passes static instruction semantics to the policy. Thus, current dual-system designs are flawed, as the MLLM’s visual guidance is not meaningfully transferred to the action policy—raising the question of whether a single LLM could achieve similar performance.

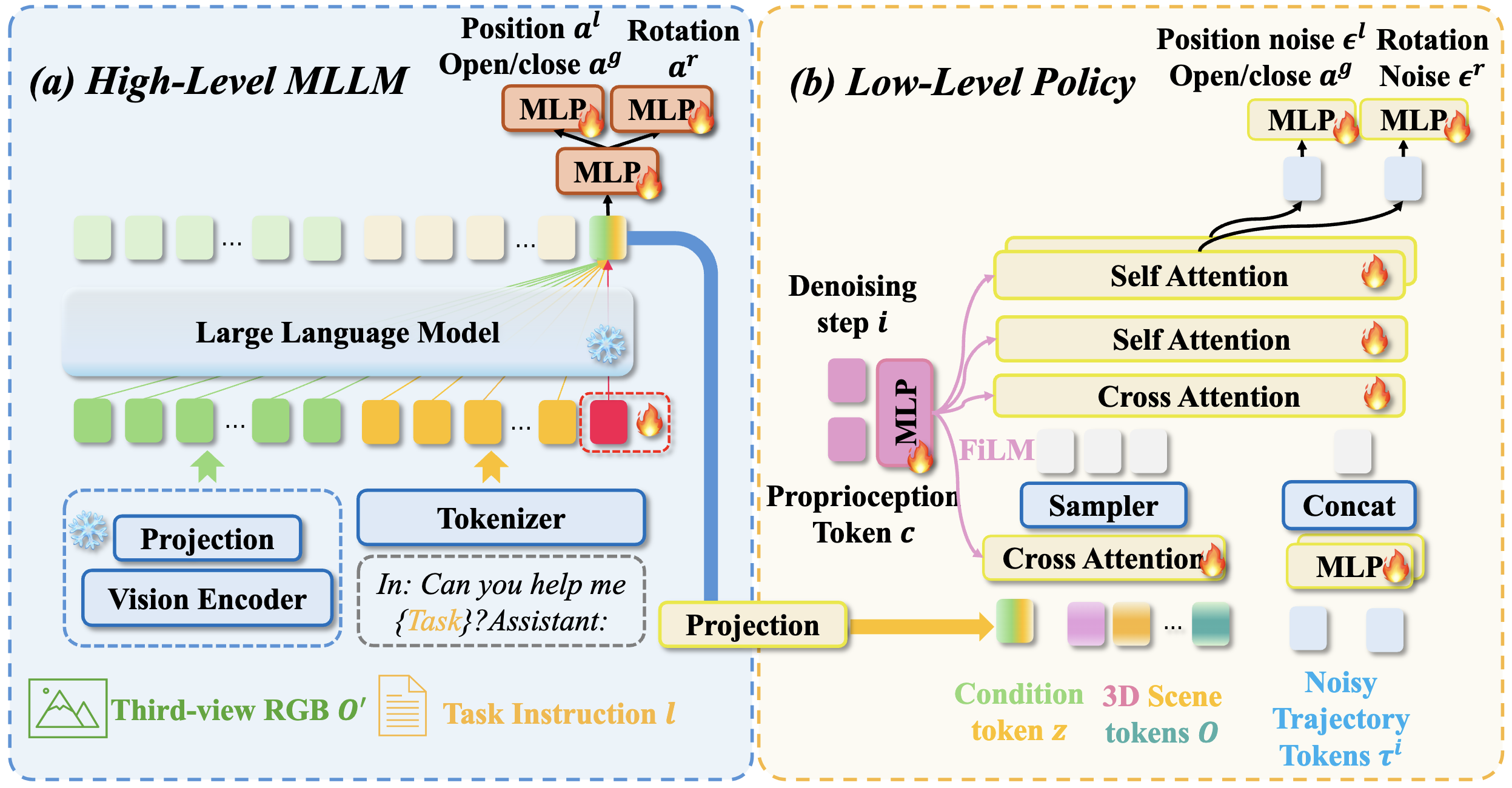

Open-Source Framework

OpenHelix bridges the high-level MLLM and the low-level policy using a learned token and linear projection. Prompt tuning allows efficient training without altering MLLM parameters. An auxiliary task ensures the MLLM performs multimodal reasoning by predicting actions directly from its latent embeddings. The policy model adopts a diffusion-based learning mechanism conditioned on visual, proprioceptive, and goal features.

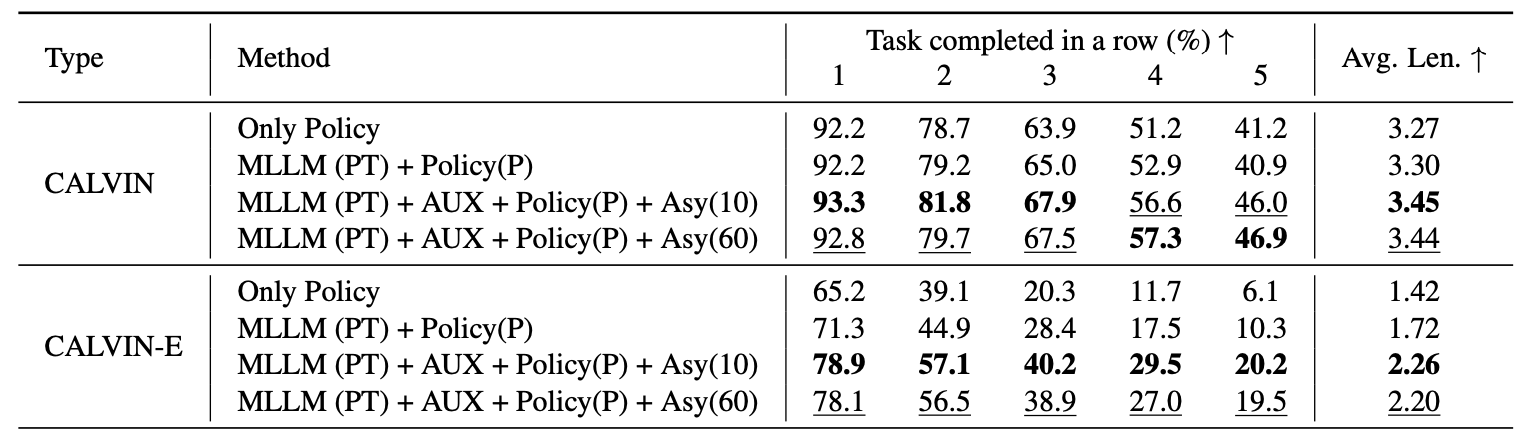

Final Result

OpenHelix bridges the high-level MLLM and the low-level policy using a learned token and linear projection. Prompt tuning allows efficient training without altering MLLM parameters. An auxiliary task ensures the MLLM performs multimodal reasoning by predicting actions directly from its latent embeddings. The policy model adopts a diffusion-based learning mechanism conditioned on visual, proprioceptive, and goal features.
